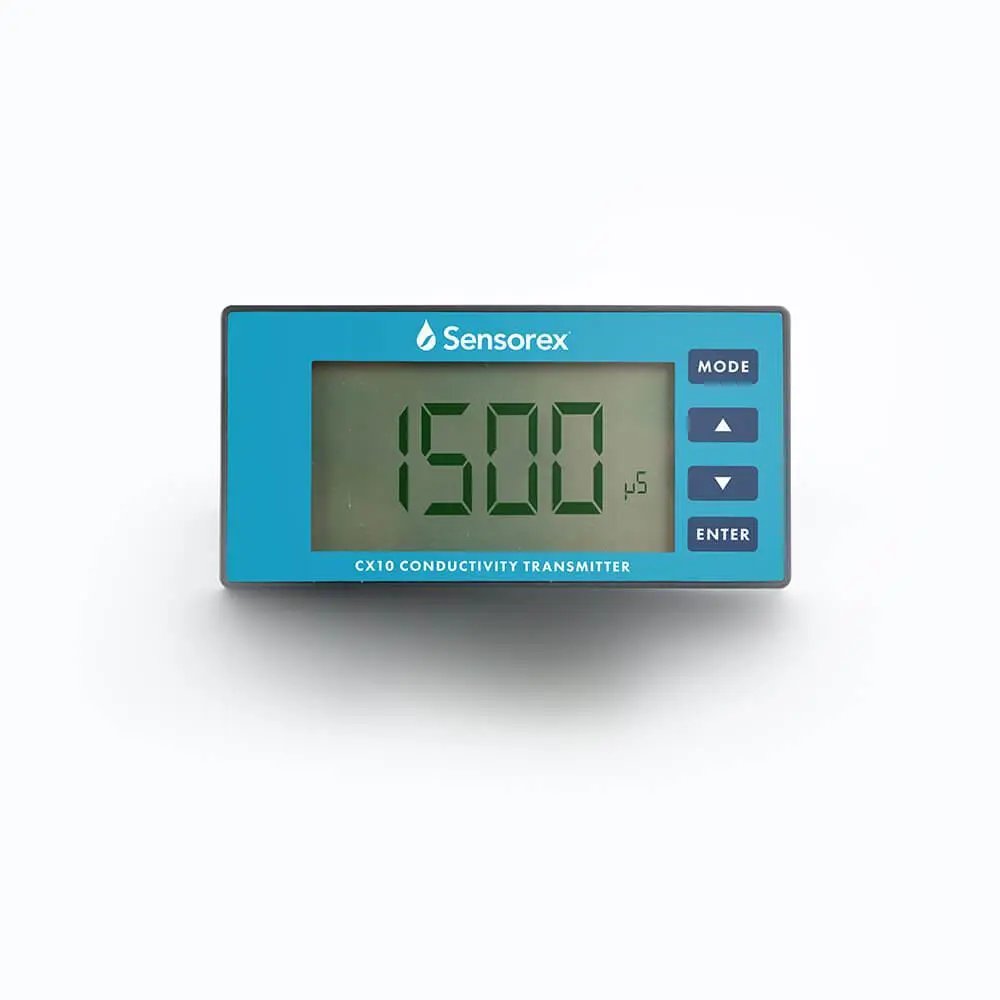

CX10 - Conductivity Transmitter, 4-20mA

CX10 - Conductivity Transmitter, 4-20mA

Sonde pH redOx
CX10
The CX10 is a convenient and cost effective solution for monitoring conductivity or resistivity of water. Save space in your panel with the small footprint 1/8 DIN case. This EC transmitter displays conductivity or resistivity readings on an easy to read LCD screen. The 4-20mA signal output can be conveniently integrated into a range of process control systems. Easy to install 1/8 DIN Case Isolated, reversible 4-20mA output Compatible with sensor utilizing spade lug or tinned lead connectors Clear LCD displays conductivity, resistivity, or temperature 100-240 VAC power supply Note: This EC transmitter is only compatible with sensors that have spade lug or tinned lead connectors and 10k NTC temperature compensation.
En rupture de stock
851 €
TTC
Quantité

Rupture de stock

The CX10 is a convenient and cost effective solution for monitoring conductivity or resistivity of water. Save space in your panel with the small footprint 1/8 DIN case. This EC transmitter displays conductivity or resistivity readings on an easy to read LCD screen. The 4-20mA signal output can be conveniently integrated into a range of process control systems.

  • Easy to install 1/8 DIN Case
  • Isolated, reversible 4-20mA output
  • Compatible with sensor utilizing spade lug or tinned lead connectors
  • Clear LCD displays conductivity, resistivity, or temperature
  • 100-240 VAC power supply

Note: This EC transmitter is only compatible with sensors that have spade lug or tinned lead connectors and 10k NTC temperature compensation.

CA Residents: Prop 65 WARNING(S)

Read More


  • Cell Constant: 0.01, 0.1, 1.0 (2 electrode)

    Reference Temperature: 25°C, factory set

    Temperature Coefficient: 2.00 or 0.00%, user selectable

    Temperature Sensor: Thermistor: 10k ohm at 25°C

    Operating Temperature: -10°C to 120°C (+/- 0.3°C, 0.1°C resolution)

    Output: 4-20mA current (isolated, reversible)

    Maximum Load: 500 ohm

    Output Accuracy: +/- 0.03mA

    Isolation Voltage: 500VDC

    Keys: Audio feedback for all keys

    Power: 100VAC to 240VAC, 50/60Hz

    Ambient Temperature Range: 0.0°C to 50.0°C

    Enclosure: 1/8 DIN (3.78″ L x 3.54″ W x 1.89″ H)


Instructions CX10
DOWNLOAD
CX10-CX20 Specifications
DOWNLOAD

Weight0.61 lbs
Dimensions3.78 × 3.54 × 1.89 in
ParameterConductivity

The CX10 is a convenient and cost effective solution for monitoring conductivity or resistivity of water. Save space in your panel with the small footprint 1/8 DIN case. This EC transmitter displays conductivity or resistivity readings on an easy to read LCD screen. The 4-20mA signal output can be conveniently integrated into a range of process control systems.

  • Easy to install 1/8 DIN Case
  • Isolated, reversible 4-20mA output
  • Compatible with sensor utilizing spade lug or tinned lead connectors
  • Clear LCD displays conductivity, resistivity, or temperature
  • 100-240 VAC power supply

Note: This EC transmitter is only compatible with sensors that have spade lug or tinned lead connectors and 10k NTC temperature compensation.

: CX10
En rupture de stock

Fiche technique

Dimensions
3.78 x 3.54 x 1.89 in
Boîtier
1/8 DIN (3,78″ L x 3,54″ l x 1,89″ H)
Température de référence
25 °C, réglé en usine
Coefficient de température
2.00 ou 0.00%, sélectionnable par l'utilisateur
Thermistance
10 kΩ à 25 °C
Température de fonctionnement
-10 °C à 120 °C (± 0,3 °C, résolution 0,1 °C)
Sortie
Courant 4-20mA (isolé, réversible)
Charge maximale
500 ohm
Précision de sortie
± 0.03 mA
Tension d'isolement
500VDC
Touches
Retour audio pour toutes les touches
Puissance
100 VCA à 240 VCA, 50/60 Hz
Plage de température ambiante
0.0°C à 50.0°C
Paramètre
Conductivité
Constante de cellule
0.01, 0.1, 1.0 (2 électrodes)
Poids
0.61 lbs
