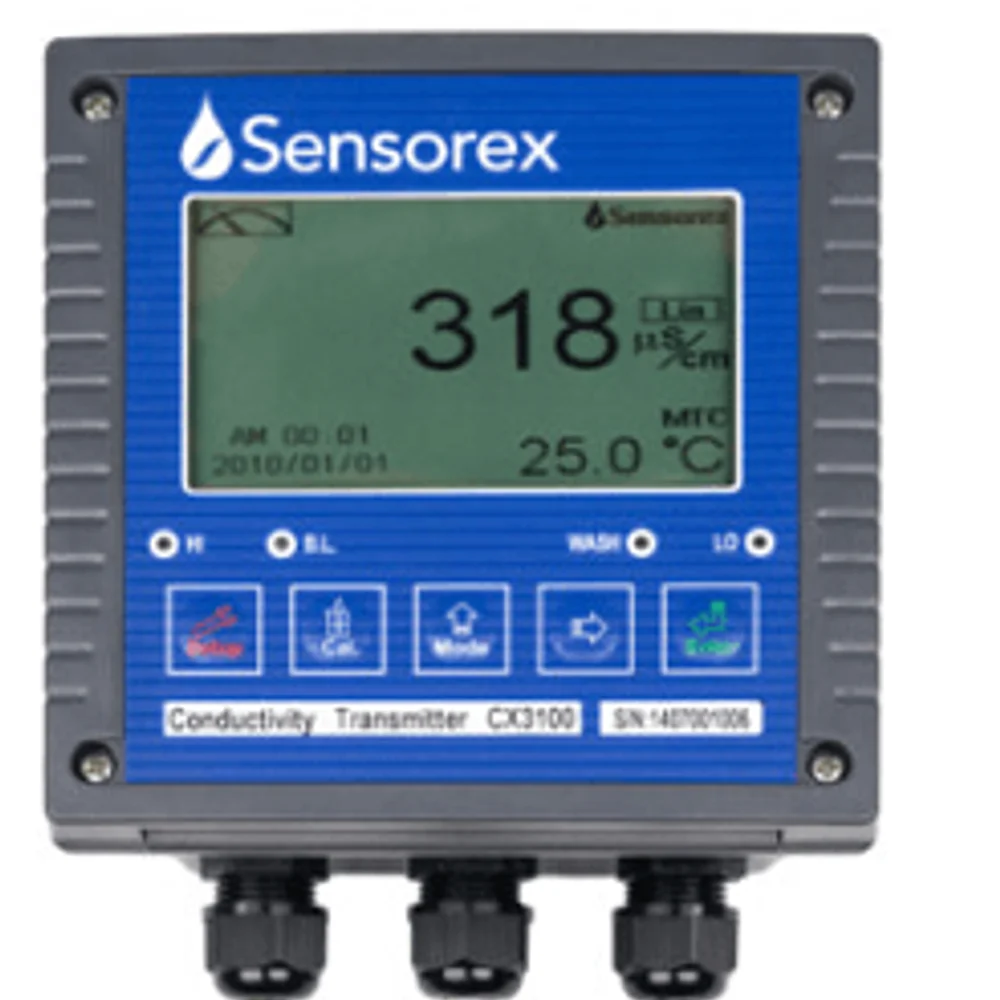

CX3100 - Conductivity Transmitter, Intelligent

CX3100 - Conductivity Transmitter, Intelligent

Sonde pH redOx
CX3100
Our CX3100 Conductivity Controller is an excellent choice for high temperature, high pressure applications. Compatible with our CS675 , CS676 , and CS700 stainless steel conductivity probes, the CX3100 is the only Sensorex controller with automatic temperature compensation up to 200°C. The CX3100 replaces the Sensorex CX3000, and features an updated user interface with user friendly full text and graphical display. Monitors conductivity, resistivity, TDS, or salinity 1/2 DIN Transmitter/Controller with full text and graphical display Ideal for use in high temperature applications (with stainless steel conductivity probes ) Automatic temperature compensation up to 200°C (PT1000 RTD)
En rupture de stock
0 €
TTC
Quantité

Rupture de stock

Our CX3100 Conductivity Controller is an excellent choice for high temperature, high pressure applications. Compatible with our CS675, CS676, and CS700 stainless steel conductivity probes, the CX3100 is the only Sensorex controller with automatic temperature compensation up to 200°C. The CX3100 replaces the Sensorex CX3000, and features an updated user interface with user friendly full text and graphical display.

  • Monitors conductivity, resistivity, TDS, or salinity
  • 1/2 DIN Transmitter/Controller with full text and graphical display
  • Ideal for use in high temperature applications (with stainless steel conductivity probes)
  • Automatic temperature compensation up to 200°C (PT1000 RTD)

CA Residents: Prop 65 WARNING(S)

Read More


  • Measurement Range Conductivity: 0-2000mS (in 7 ranges, auto or fixed), +/-1% Accuracy

    Measurement Range Resistivity: 0.00 – 20.00 MΩ/cm, 0.01 MΩ/cm resolution, +/-1% Accuracy

    Measurement Range Salinity: 0.0 – 199.99 ppt, 0.1 ppt (0.000-19.999 ppm)

    Temperature Range: -30°C to 200°C, 0.1°C resolution, 0.2°C accuracy

    Calibration Mode: Any tech & NIST buffers up to 3 points

    Cell Constants: 0.1 or 10/cm fixed or freely selectable 0.0080 – 19.99/cm

    Analog Output 1: 0/4-20mA, corresponding to Conductivity, Resistivity or Salinity output. Max load 500 Ω

    Analog Output 2: 0/4-20mA, corresponding to temperature output. Max load 500 Ω

    Relays: Contact : 240V AC, 5A max Activate: setpoints Hi/Low, Hi/Hi, Low/Low, ON/OFF

    Enclosure: 1/2 DIN NEMA 4X IP65

    Dimensions : 144 mm (5.67″) H x 144 mm (5.67″) W x 115mm (4.53″) D

    Panel Cut-Out: 138mm (5.43″) x 138mm (5.43″)

    Mounting Options: Panel or wall mount

    Temperature Compensation: Pt1000Ω RTD with automatic compensation or manually configured

    Temperature Coefficient: Linear comp 0.00-40.00%, Non-linear comp for pure water

    Power Requirement: 100-240V AC +/- 10%, 7W max, 50/60 Hz

    Certifications: CE

    Warranty: One year limited warranty

    Weight: Approx. 0.80kg (1.75lbs)


Instructions CX3100
DOWNLOAD
CX3100 Specifications
DOWNLOAD

Weight2.76 lbs
Dimensions11 × 10.5 × 6.5 in

Our CX3100 Conductivity Controller is an excellent choice for high temperature, high pressure applications. Compatible with our CS675, CS676, and CS700 stainless steel conductivity probes, the CX3100 is the only Sensorex controller with automatic temperature compensation up to 200°C. The CX3100 replaces the Sensorex CX3000, and features an updated user interface with user friendly full text and graphical display.

  • Monitors conductivity, resistivity, TDS, or salinity
  • 1/2 DIN Transmitter/Controller with full text and graphical display
  • Ideal for use in high temperature applications (with stainless steel conductivity probes)
  • Automatic temperature compensation up to 200°C (PT1000 RTD)
: CX3100
En rupture de stock

Fiche technique

A max Activate
setpoints Hi/Low, Hi/Hi, Low/Low, ON/OFF
Mounting Options
Panel or wall mount
Power Requirement
100-240V AC +/- 10%, 7W max, 50/60 Hz
Certifications
CE
Coefficient de température
Linear comp 0.00-40.00%, Non-linear comp for pure water
Cell Constants
0.1 or 10/cm fixed or freely selectable 0.0080 - 19.99/cm
Measurement Range Conductivity
0-2000mS (in 7 ranges, auto or fixed), +/-1% Accuracy
Measurement Range Resistivity
0.00 - 20.00 MΩ/cm, 0.01 MΩ/cm resolution, +/-1% Accuracy
Dimensions
11 x 10.5 x 6.5 in
144 mm (5.67″) H x 144 mm (5.67″) W x 115mm (4.53″) D
Measurement Range Salinity
0.0 - 199.99 ppt, 0.1 ppt (0.000-19.999 ppm)
Warranty
One year limited warranty
Calibration Mode
Any tech & NIST buffers up to 3 points
Boîtier
1/2 DIN NEMA 4X IP65
Panel Cut-Out
138mm (5.43″) x 138mm (5.43″)
Analog Output 1
0/4-20mA, corresponding to Conductivity, Resistivity or Salinity output. Max load 500 Ω
Analog Output 2
0/4-20mA, corresponding to temperature output. Max load 500 Ω
Contact
240V AC, 5
Temperature Range
-30°C to 200°C, 0.1°C resolution, 0.2°C accuracy
Compensation de la température
Pt1000Ω RTD with automatic compensation or manually configured
Poids
2.76 lbs
Approx. 0.80kg (1.75lbs)
