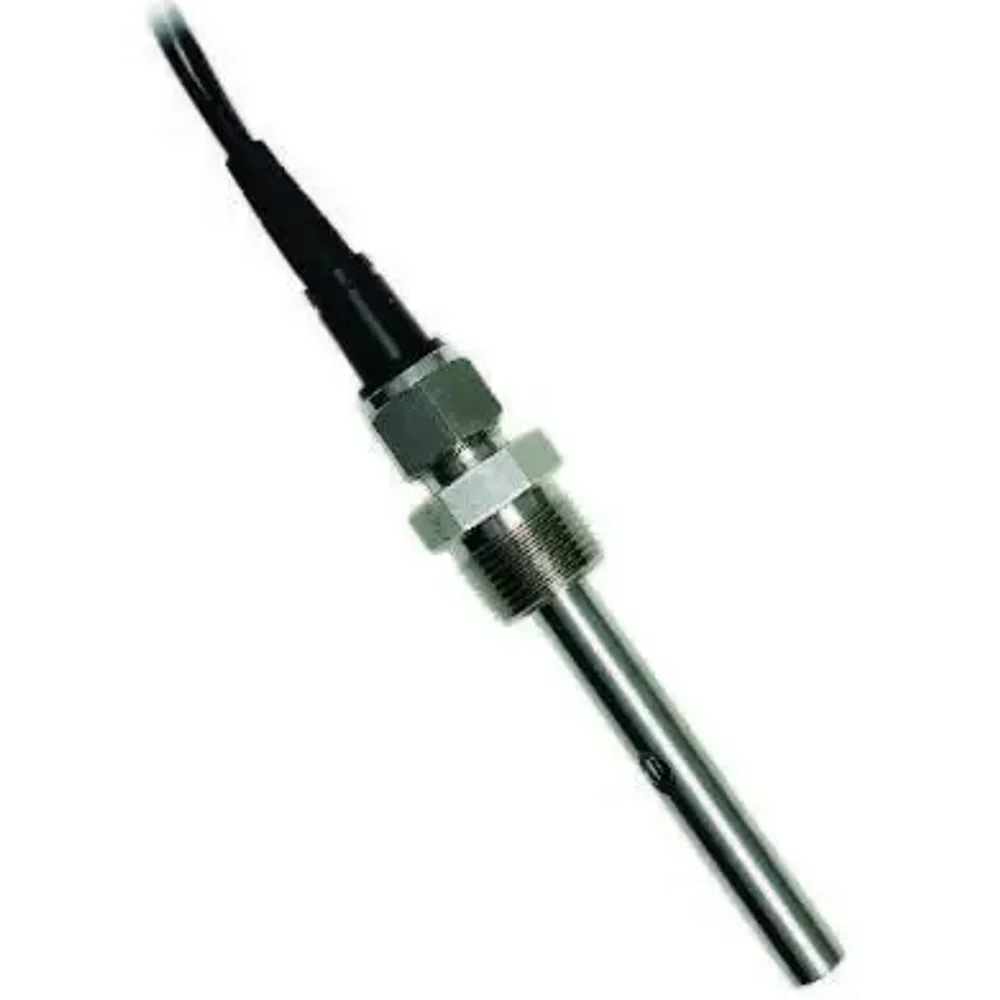

CS700 - Contacting Conductivity Sensor, High Performance Stainless Steel


CS700 - Contacting Conductivity Sensor, High Performance Stainless Steel

Sonde pH redOx
CS700-C-1-CC-3-A-2-B
High Accuracy and Repeatability Accuracy is 2% of reading with 1% repeatability* Electro-polish finish provides excellent stability and consistency Multiple Cell Constants Cover Wide Range of Applications 0.01/cm for ultra-pure/pure water 0.1/cm for pure and drinking water 1.0/cm for wastewater and process water Durable in High-Temperature and High-Pressure Environments Built from 316 Stainless Steel and Teflon Withstands up to 150° C (302° F) and 1379 KPA (200 PSIG) CA Residents :  Prop 65 WARNING(S) *Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics
Cell Constant : C - 1.0
Installation Fitting Type : 2 - 1/2" NPT Stainless Steel
Compensation de température : 1 - PT1000 RTD
En rupture de stock
2 077 €
TTC
Quantité

Rupture de stock

The CS700 High Performance Contacting Conductivity Sensor is ideally suited for ultrapure/pure water, drinking water, and lower-conductivity drinking water applications. It’s durable in high-temperature (150° C / 302° F) and high-pressure environments (1,379 kpa / 200 psig), thanks to stainless steel and teflon construction. In addition, quick installation is made possible via using compression fitting with 3/4” or 1/2” threads. Pick from three cell constants based on your application: 0.01, 0.1 and 1.0.

Read More


  • Cell Constants: select from 0.01/cm, 0.1/cm, and 1.0/cm

    Response Time: < 30 seconds
    Temperature Rating: 150° C (302° F) with high temperature cable, 70° C with standard cable
    Pressure Rating: 1379 kPa (200 psig)

    Materials of Construction: 316 Stainless Steel Body with Teflon wetted materials
    Process Connection: 3/4” NPT or 1/2” NPT

    Cable length: 10 Foot Cable (3 Meters)

    Communication: Raw output (standard) or Remote Electronics (Modbus)
    Temperature Compensation: Pt1000 RTD


CS700 Instructions
DOWNLOAD
CS700 Specifications
DOWNLOAD

Weight0.46 lbs
Dimensions5.7 × 2 × 2 in
Cell ConstantA - 0.01, B - 0.1, C - 1.0
Temperature Compensation1 - PT1000 RTD
Installation/Fitting Type2 - 1/2" NPT Stainless Steel, 5 - 3/4" NPT Stainless Steel

High Accuracy and Repeatability

  • Accuracy is 2% of reading with 1% repeatability*
  • Electro-polish finish provides excellent stability and
    consistency

Multiple Cell Constants Cover Wide Range of Applications

  • 0.01/cm for ultra-pure/pure water
  • 0.1/cm for pure and drinking water
  • 1.0/cm for wastewater and process water

Durable in High-Temperature and High-Pressure Environments

  • Built from 316 Stainless Steel and Teflon
  • Withstands up to 150° C (302° F) and 1379 KPA (200 PSIG)

CA Residents: Prop 65 WARNING(S)

*Accuracy and repeatability of the sensor depends on the accuracy of the calibrating electronics

: CS700-C-1-CC-3-A-2-B
En rupture de stock

Fiche technique

Dimensions
5,7 x 2 x 2 in
Process Connection
3/4" NPT or 1/2" NPT
Cell Constants
select from 0.01/cm, 0.1/cm, and 1.0/cm
Temperature Rating
150° C (302° F) with high temperature cable, 70° C with standard cable
Pressure Rating
1379 kPa (200 psig)
Materials of Construction
316 Stainless Steel Body with Teflon wetted materials
Applications
Conductivity, Online Sensors
Longueur du câble
10 Foot Cable (3 Meters)
Compensation de la température
1 - PT1000 RTD
PT1000 RTD
Constante de cellule
A - 0.01, B - 0.1, C - 1.0
Communication
Raw output (standard) or Remote Electronics (Modbus)
Installation/Fitting Type
2 - 1/2" NPT Stainless Steel, 5 - 3/4" NPT Stainless Steel
Poids
0.46 lbs
Temps de réponse
< 30 seconds
